제품 WKS4.5T-2/TEL
Actuator and Sensor Cable, PVC
Connection Cable

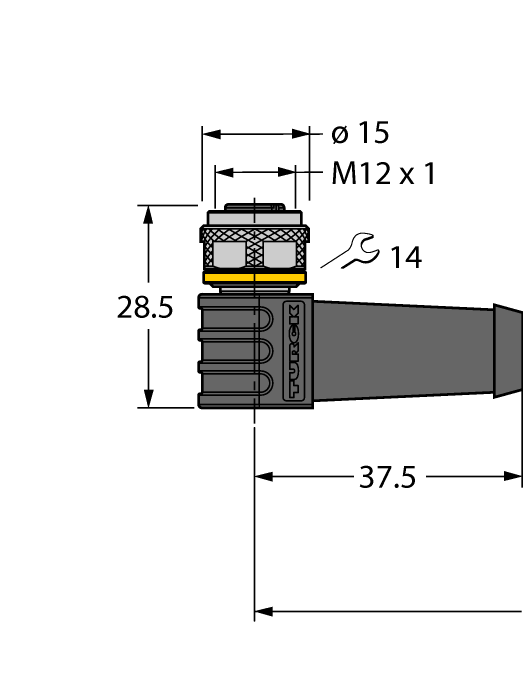

주문 번호: 6626364- Female M12, angled, 5-pin
- Shield on coupling nut/screw
- 재킷 재질: PVC, 실드형
- 재킷 색상: 검은색
- 화학 물질 및 오일 저항성
- 내화성
- 산성 및 알칼리성 용액 저항성
- 미생물 및 가수 분해 저항성
- LABS 프리
- 보호 등급: IP67, IP69K
- Cable length: 2.0 m

General data
EAN | 4047101303810 |
eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
Customs tariff number | 85444290900 |
Country of origin | PL |
Weight | 139 g |
Technical Data
어플리케이션 | 신호 |
디자인 | 연결 케이블 |
커넥터 A | female, M12 x 1, 직각형, A 코드형 |
핀의 수 | 5 |
Connector body | 플라스틱, TPU, 검은색 |
Coupling nut/screw | 황동, CuZn, 니켈 도금 |
정격 전압 | 60 V |
전류 | 4 A |
케이블 직경 | Ø 6.1 mm |

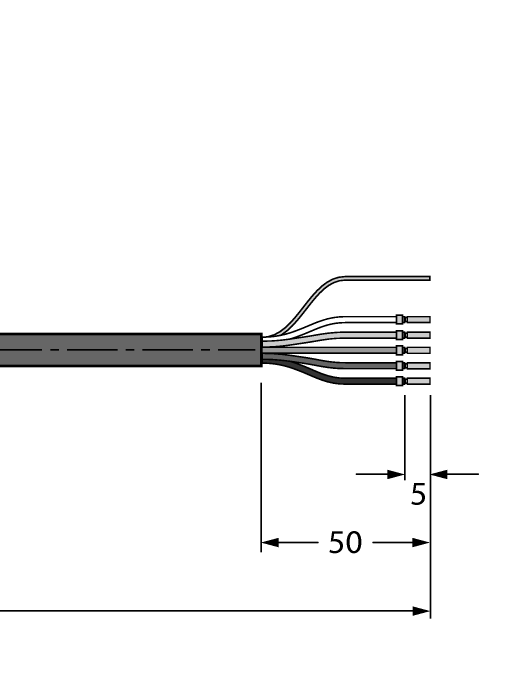

Cable length | 2.0 m |
Cable jacket | PVC, 검은색 |
Number of Conductors | 5 |
보호 등급 | IP67, IP69K |
Special features | 실드형, 커플링 너트에 실드 |
인증 | cULus |
설치 액세서리
![]() |
CMBS8151-0
Field-wireable male connector, M12 × 1, straight, 5-pin, screw terminal connection, cable feedthrough 6.0 to 8.0 mm, core cross-section/terminal capacity 0.14 to 0.75 mm², metal housing, metal nut, shieldable |
6930161 |
![]() |

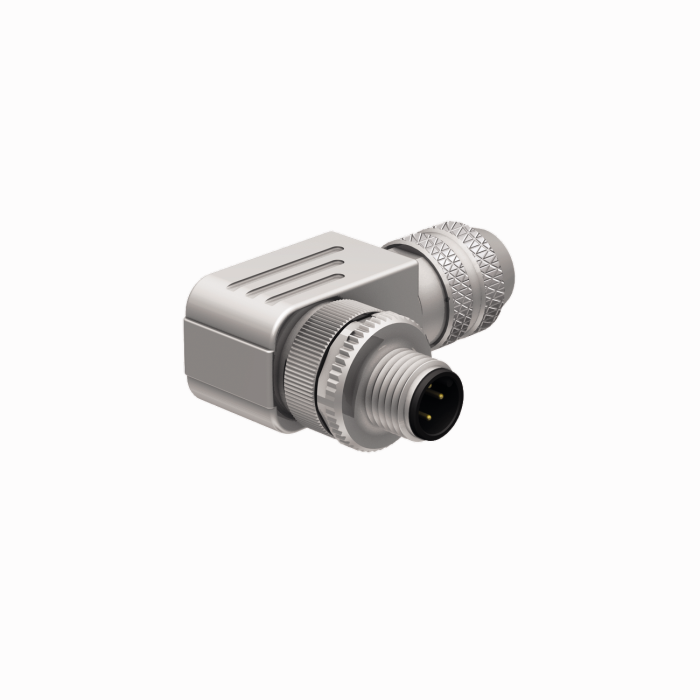

CMBS8251-0
Field-wireable male connector, M12 × 1, angled, 5-pin, screw terminal connection, cable feedthrough 6.0 to 8.0 mm, core cross-section/terminal capacity 0.14 to 0.75 mm², metal housing, metal nut, shieldable |
6930216 |
![]() |
TORQUE-WRENCH-SET-AS
Torque wrench set; handles with adjustable torque 0.4-1.0 Nm, torque wrench for M8 (SW9), fork wrench for M12 (SW 14) |
6936170 |
![]() |
BLANK-LABEL-FOR-CORDSETS-TEL-TXL
Label for TEL and TXL cables, length: 18 mm, height: 4 mm, material: polycarbonate (PC), color: white, halogen-free and flame-retardant |
6936206 |
연결 액세서리
![]() |
LABEL-HOLDER-FLEX-PVC
연장 케이블 식별용 PVC 라벨 홀더(TEL/TXL 제품 시리즈), 케이블 직경: 최소 5 mm, 치수 4 × 18 mm, 배송 단위: 패키지당 50개 피스 |
100048170 |
