제품 HT-WAK4-2-HT-WAS4/S2430
High-Temperature Resistant Actuator and Sensor Cable
Extension Cable
주문 번호: 8038668- M12 female connector, straight, 4-pin

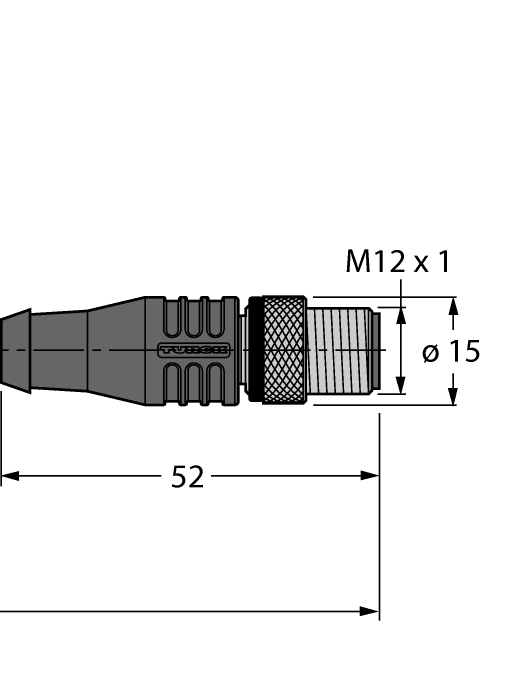

- M12 male connector, straight, 4-pin
- Sheath material: PTFE
- Sheath color: white
- Flame-retardant
- Resistant to welding sparks
- Resistant to chemicals, UV radiation and oils
- Resistant to acids and alkaline solutions
- LABS free
- Resistant to microbes and hydrolysis
- Cold and heat-flexible
- RoHS-compliant
- Protection class IP65
- Temperature range of the cable: -190°C…260°C
- Cable length: 2.0 m
General data
| EAN | 4047106003920 |
| eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 85444290900 |
| Country of origin | DE |
| Weight | 102 g |
Technical Data
| 어플리케이션 | 신호 |
| 디자인 | 케이블 |
| 커넥터 A | female, M12 x 1, 일자형 |
| 핀의 수 | 4 |
| Connector body | 플라스틱, PBT GF, 검은색 |
| Coupling nut/screw | 황동, CuZn, 니켈 도금 |
| 커넥터 B | 커넥터, M12 x 1, 일자형 |
| 핀의 수 | 4 |
| Connector body | 플라스틱, PBT GF, 검은색 |
| 커플링 너트/리테이닝 나사 | 황동, CuZn, 니켈 도금 |
| 정격 전압 | 250 V |
| 전류 | 4 A |
| 케이블 직경 | Ø 3.8 mm |
| Cable length | 2.0 m |
| Cable jacket | PTFE, 하얀색 |
| Number of Conductors | 4 |
| 보호 등급 | IP65 |
| Special features | 고온, 용접 스파크 저항성 |
