제품 PKW4M-2/TXL
Actuator, Sensor and Supply Cable, PUR
Connection Cable

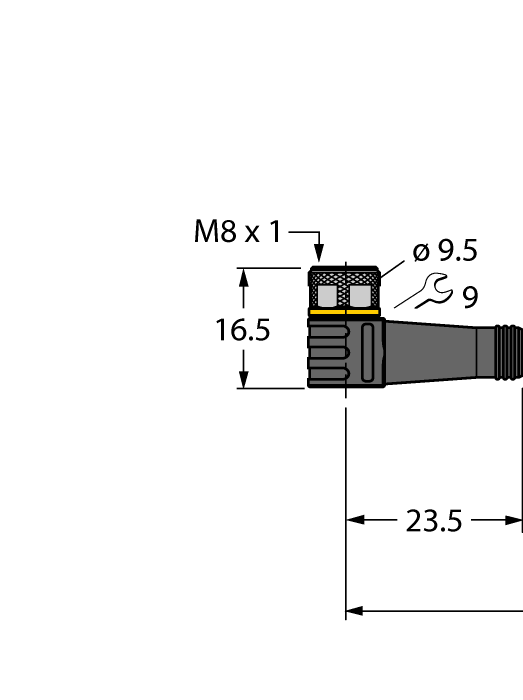

주문 번호: 6625559- Female M8, angled, 4-pin
- 재킷 재질: PUR
- 재킷 색상: 검은색
- 드래그 체인용으로 적합
- 화학 물질, 자외선 복사 및 오일 저항성
- 내화성(UL 1581 규격 FT2, IEC 60332-2-2)
- 용접 스파크 저항성
- 할로겐, 실리콘, PVC 및 LABS 프리
- 특히 높은 마모 저항성
- 보호 등급: IP67, IP69K
- Cable length: 2.0 m

General data
EAN | 4047101272994 |
eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
Customs tariff number | 85444290900 |
Country of origin | PL |
Weight | 69 g |
Technical Data
어플리케이션 | 신호, 전원 |
디자인 | 연결 케이블 |
커넥터 A | female, M8 × 1, 직각형 |
핀의 수 | 4 |
Connector body | 플라스틱, TPU, 검은색 |
Coupling nut/screw | 황동, CuZn, 니켈 도금 |
전류 | 4 A |
케이블 직경 | Ø 4.5 mm |
Cable length | 2.0 m |
Cable jacket | PUR, 검은색 |
Number of Conductors | 4 |
보호 등급 | IP67, IP69K |
Special features | 드래그 체인용으로 적합 |
인증 | cULus |
설치 액세서리
![]() |
HAS5141-0
Field-wireable male connector, M8 × 1, straight, 4-pin, insulation piercing connection, cable feedthrough 2.5 to 5.1 mm, core cross-section/terminal capacity 0.14 to 0.34 mm², plastic housing, metal nut |
6905403 |
![]() |
BS5143-0
필드 와이어블 male 커넥터, M8 × 1, 일자형, 4핀, 나사 터미널 연결, 케이블 피드스루 3.5~5.0 mm, 코어 단면/터미널 용량 0.14~0.50 mm², 플라스틱 하우징, 금속 리테이닝 나사 |
6901013 |
![]() |
HS5241-0
Field-wireable male connector, M8 × 1, angled, 4-pin, pressfit technology, cable feedthrough 4.0 to 5.0 mm, core cross-section/terminal capacity 0.14 to 0.34 mm², plastic housing, metal nut |
6902830 |
![]() |
FW-PRSPM0420-SA-S-0406
Field-wireable male connector, M8 × 1, straight, 4-pin, screw terminal connection, cable feedthrough 4.0 to 5.5 mm, core cross-section/terminal capacity 0.14 to 0.5 mm², plastic housing, metal retaining screw |
100002295 |
![]() |
TORQUE-WRENCH-SET-AS
Torque wrench set; handles with adjustable torque 0.4-1.0 Nm, torque wrench for M8 (SW9), fork wrench for M12 (SW 14) |
6936170 |
![]() |
BLANK-LABEL-FOR-CORDSETS-TEL-TXL
Label for TEL and TXL cables, length: 18 mm, height: 4 mm, material: polycarbonate (PC), color: white, halogen-free and flame-retardant |
6936206 |
연결 액세서리
![]() |
LABEL-HOLDER-FLEX-PVC
연장 케이블 식별용 PVC 라벨 홀더(TEL/TXL 제품 시리즈), 케이블 직경: 최소 5 mm, 치수 4 × 18 mm, 배송 단위: 패키지당 50개 피스 |
100048170 |
