제품 RKC4.4T-2/TEL
Actuator and Sensor Cable, PVC
Connection Cable
주문 번호: 6625013- Female M12, straight, 4-pin
- 재킷 재질: PVC
- 재킷 색상: 검은색
- 화학 물질 및 오일 저항성
- 내화성
- 산성 및 알칼리성 용액 저항성
- 미생물 및 가수 분해 저항성
- LABS 프리
- 보호 등급: IP67, IP69K
- Cable length: 2.0 m
General data
| EAN | 4047101268706 |
| eCl@ss-Code (V5.1.4): | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 85444290900 |
| Country of origin | PL |
| Weight | 87 g |
Technical Data
| 어플리케이션 | 신호 |
| 디자인 | 연결 케이블 |
| 커넥터 A | female, M12 x 1, 일자형, A 코드형 |
| 핀의 수 | 4 |
| Connector body | 플라스틱, TPU, 검은색 |
| Coupling nut/screw | 황동, CuZn, 니켈 도금 |
| 정격 전압 | 250 V |
| 전류 | 4 A |
| 케이블 직경 | Ø 4.6 mm |
| Cable length | 2.0 m |
| Cable jacket | PVC, 검은색 |
| Number of Conductors | 4 |
| 보호 등급 | IP67, IP69K |
| 인증 | cULus |
설치 액세서리
|

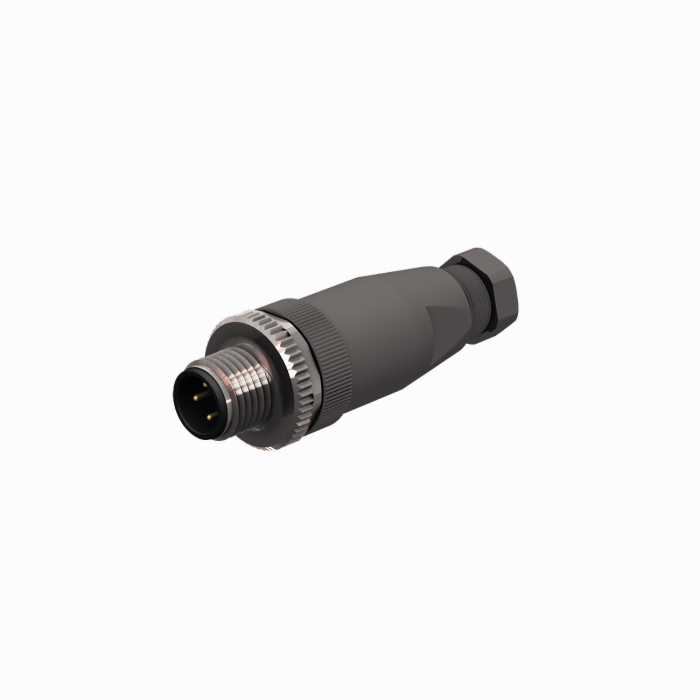

HAS8141-0
Field-wireable male connector, M12 × 1, straight, 4-pin, insulation piercing connection, cable feedthrough 4.0 to 5.1 mm, core cross-section/terminal capacity 0.14 to 0.34 mm², plastic housing, metal nut |
6905406 |
|

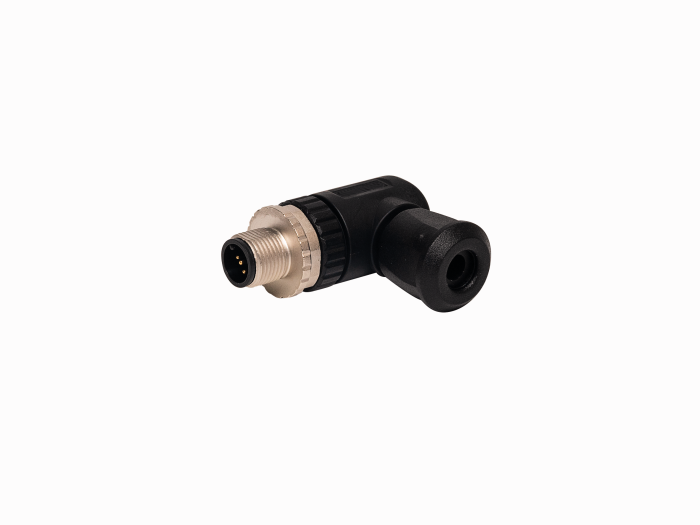

HAS8241-0
Field-wireable male connector, M12 × 1, angled, 4-pin, insulation piercing connection, cable feedthrough 4.0 to 5.1 mm, core cross-section/terminal capacity 0.14 to 0.34 mm², plastic housing, metal nut |
6905400 |
|

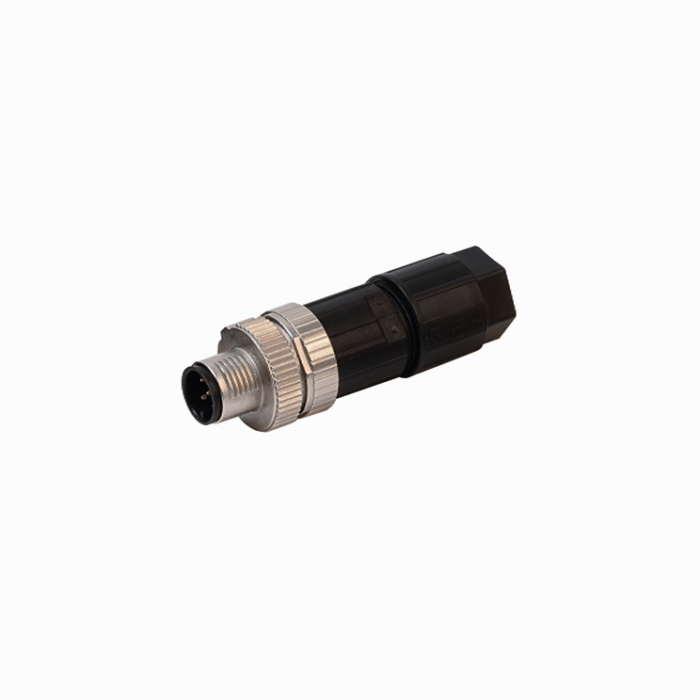

BS8141-0
Field-wireable male connector, M12 × 1, straight, 4-pin, screw terminal connection, cable feedthrough 4.0 to 6.0 mm, core cross-section/terminal capacity 0.14 to 0.75 mm², plastic housing, metal retaining screw |
69010 |
|

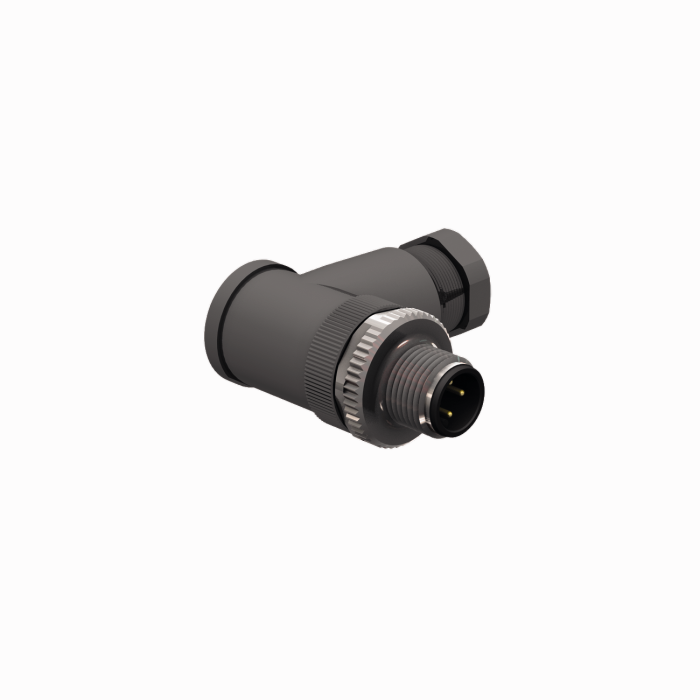

BS8241-0
필드 와이어블 커넥터, M12 × 1, 직각형, 4핀, 나사 터미널 연결, 케이블 피드스루 4.0~6.0 mm, 코어 단면/터미널 용량 0.14~0.75 mm², 플라스틱 하우징, 금속 리테이닝 나사 |
69011 |
|

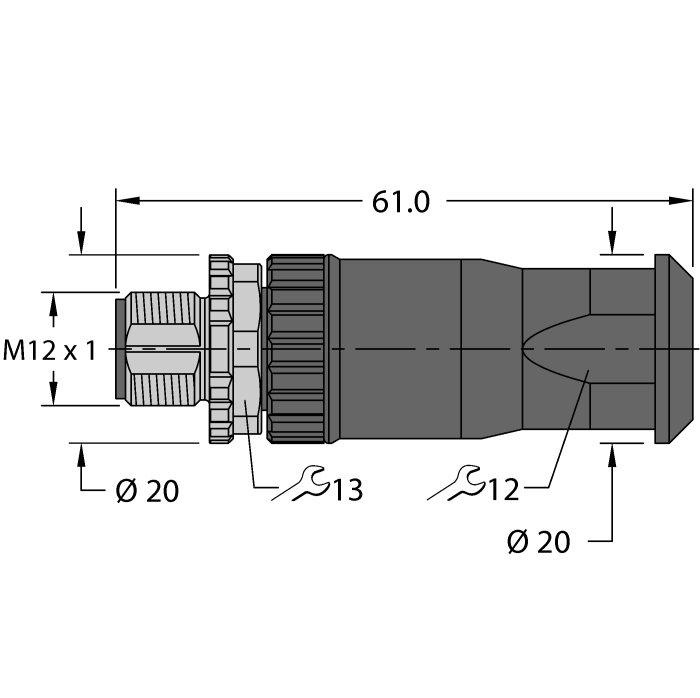

FW-ERSPM0426-SA-P-0408
필드 와이어블 male 커넥터, M12 × 1, 일자형, 4핀, 푸시인 연결, 케이블 피드스루 4.0~8.0 mm, 코어 단면/터미널 용량 0.14~0.75 mm², 플라스틱 하우징, 금속 리테이닝 나사 |
100002048 |
|

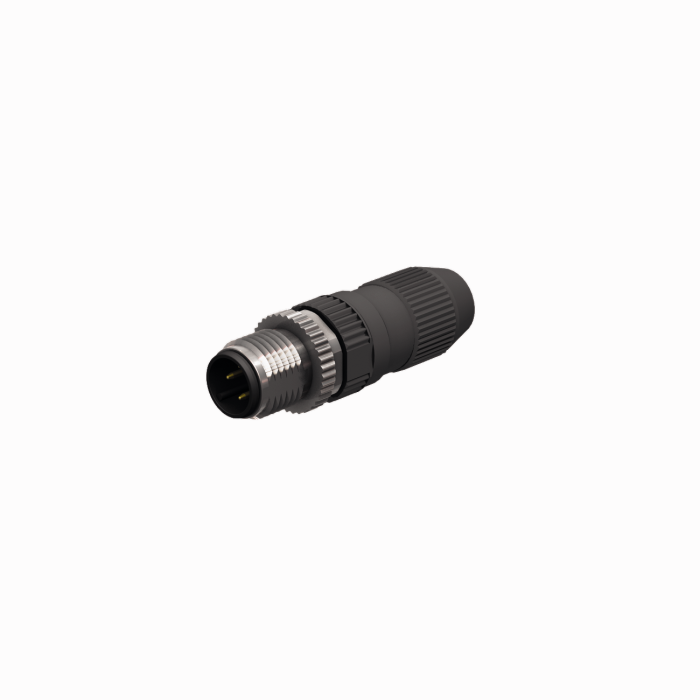

FW-ERSPM0416-SA-S-0408
Field-wireable male connector, M12 × 1, straight, 4-pin, screw terminal connection, cable feedthrough 4.0 to 8.0 mm, core cross-section/terminal capacity 0.25 to 1.5 mm², plastic housing, metal retaining screw |
100002288 |
|

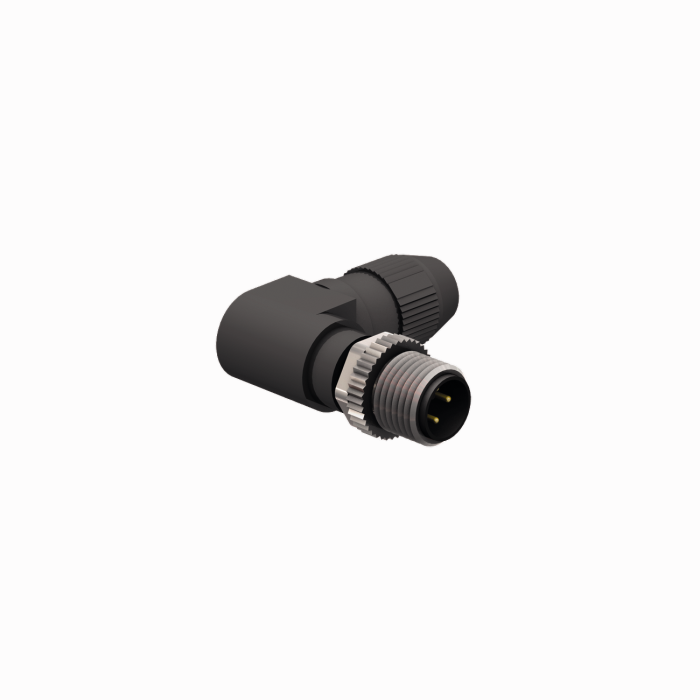

FW-EWSPM0416-SA-S-0408
Field-wireable male connector, M12 × 1, angled, 4-pin, screw terminal connection, cable feedthrough 4.0 to 8.0 mm, core cross-section/terminal capacity 0.25 to 1.5 mm², plastic housing, metal retaining screw |
100002290 |
|
TORQUE-WRENCH-SET-AS
Torque wrench set; handles with adjustable torque 0.4-1.0 Nm, torque wrench for M8 (SW9), fork wrench for M12 (SW 14) |
6936170 |
|
BLANK-LABEL-FOR-CORDSETS-TEL-TXL
Label for TEL and TXL cables, length: 18 mm, height: 4 mm, material: polycarbonate (PC), color: white, halogen-free and flame-retardant |
6936206 |
연결 액세서리
|
LABEL-HOLDER-FLEX-PVC
연장 케이블 식별용 PVC 라벨 홀더(TEL/TXL 제품 시리즈), 케이블 직경: 최소 5 mm, 치수 4 × 18 mm, 배송 단위: 패키지당 50개 피스 |
100048170 |
