제품 IMX12-DI01-2S-2T-0/24VDC
Isolating switching amplifier
2-channel
주문 번호: 7580020- 2개 트랜지스터 출력(≤ 10 kHz)
- 전환 가능: 2-채널 또는 신호 더블링
- 출력 모드 조정 가능(NO/NC 모드)
- 입력 회로의 단선/단락이 모니터링됨(ON/OFF 전환 가능)
- 완전한 갈바닉 절연
- 입력의 역극성 보호
- Removable screw terminals
- ATEX, IECEx, NEPSI, cUL, cFM, INMETRO, Kosha, TIIS, DNV, GL
- 2종 위험 지역에서 사용
- SIL 2
General data
EAN | 4047101310597 |
eCl@ss-Code (V5.1.4): | 27210121 -/- Isolating switching amplifier |
Customs tariff number | 85437090990 |
Country of origin | DE |
Weight | 157 g |
Technical Data
Signal type | Digital input |
장치 타입 | 절연 스위칭 앰프 |
Ex version | yes |
인증 | ATEX |
Functional safety (SIL/PL) | SIL2 |
Nominal voltage | 24 VDC |
Number of channels | 2 |
Digital output | Transistor output |
전기적 연결 | 탈착식 나사 터미널, 2핀 |
보호 등급 | IP20 |
Product series | IM(X)12 |
데이터 시트
German | 228 KB |
English | 224 KB |
French | 226 KB |
Spanish | 227 KB |
Czech | 227 KB |
Dutch | 223 KB |
Romanian | 224 KB |
Russian | 258 KB |
Polish | 227 KB |
Chinese | 291 KB |
Turkish | 226 KB |
기술 전단
매뉴얼
빠른 시작 가이드
인증
제품 전단
제품 카탈로그
CAD 파일
EPLAN Electric P8
EU 적합성 선언
설치 액세서리

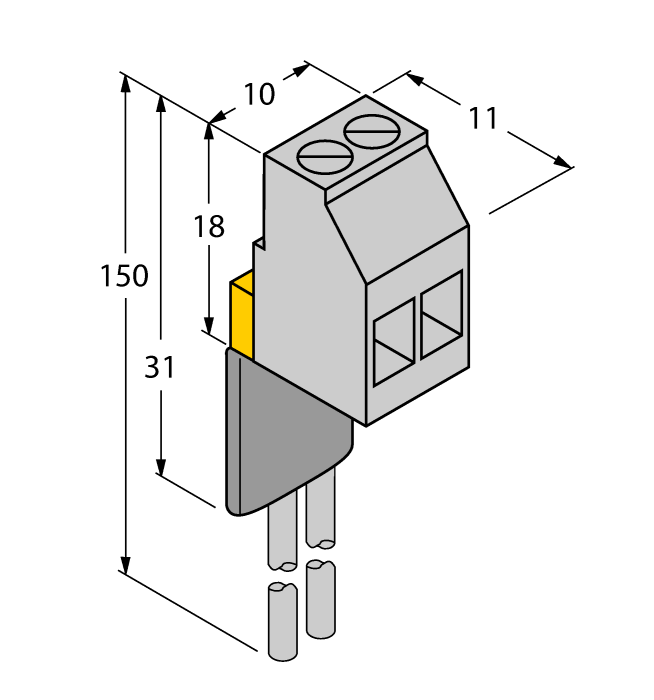

WM1 WIDERSTANDSMODUL
The resistor module WM1 meets the requirements for line monitoring between a mechanical contact and a TURCK signal processor. The input circuit of the signal processor is designed for sensors acc. to EN60947-5-6 (NAMUR) and equipped with a wire-break and short-circuit monitoring function. |
0912101 |
